One of many greatest factors of competition with new AMD Zen 4 CPUs is their working temperature, which is usually up round 95C. AMD has addressed this by saying it is all by design and is meant, however that hasn’t stopped the Web from drawing its personal conclusions and assumptions.
We have heard numerous totally different takes on the matter and with this characteristic we wish to hone in on the real concern that utilizing something lower than a liquid cooler on the Ryzen 5 7600X would see a major efficiency loss. In spite of everything, in our evaluation of the 7600X we examined with the be quiet! Pure Loop 2 FX 360mm liquid cooler and the chip nonetheless peaked at 93C for an all-core workload. That is an insane temperature for a 6-core CPU utilizing a 360mm AIO.
Based mostly on that alone, it is not loopy to imagine that utilizing an reasonably priced air cooler efficiency will tank as a result of thermal throttling, which sees a discount in working frequency.
Shortly after finishing our 7600X evaluation we determined to do some testing and whereas we have now considerably extra Zen 4 cooling testing deliberate, that is an appetizer, a “for science” sort take a look at if you’ll…

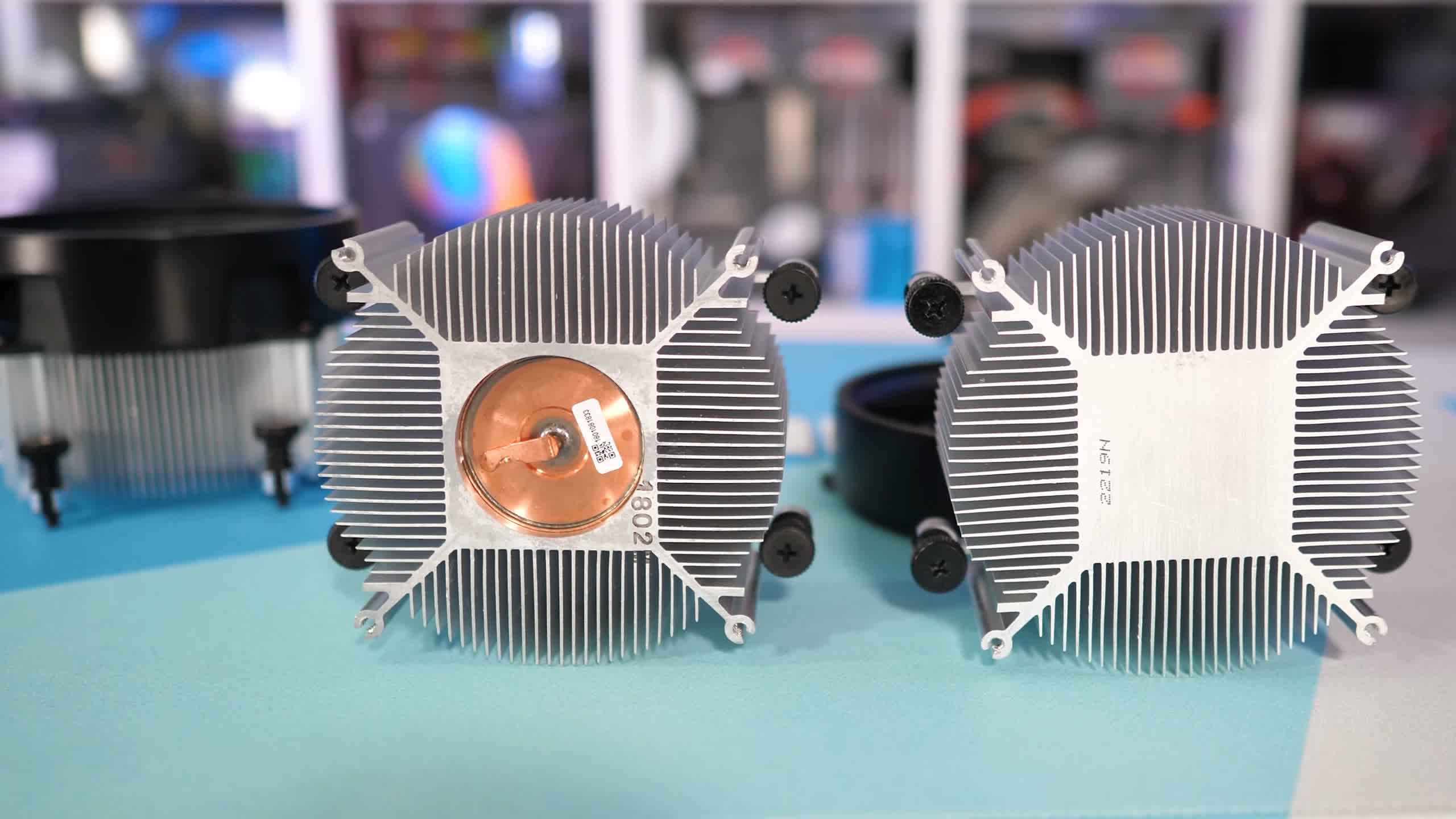

We determined that it is perhaps entertaining to throw AMD’s outdated Wraith Spire field cooler on the 7600X to see simply how poorly it will run, and the outcomes had been extraordinarily shocking and in no way like what we had been anticipating.
Across the similar time we had been attempting to fritter away our 7600X with AMD’s field cooler, quite a lot of speak round Eco Mode began to floor in addition to the PBO2 curve optimizer with a destructive voltage.
So we expanded the scope of the testing to take a look at not simply how the 7600X behaves with a fundamental air cooler, but additionally how the 65w Eco mode works, in addition to the PBO2 curve optimizer, and we did all this testing with each the Wraith Spire and the 360mm liquid cooler.
We’ve got quite a lot of information to go over, however earlier than we do let’s speak about Eco Mode and PBO2.
AMD’s Eco Mode merely enforces an influence restrict, so slightly than let the 7600X run at full energy, which we noticed as 86 watts for the cores, it limits core energy to 65 watts, a slightly substantial 24% drop in energy.
This would possibly not enhance efficiency, if something it should scale back it, however the hope is it should solely barely scale back efficiency whereas massively lowering thermals.
Then we have now the PBO2 curve optimizer with a destructive voltage, this may be considered extra like overclocking, as in your mileage will fluctuate and making certain stability may be tough. The curve optimizer is an Adaptive Voltage and Frequency Scaling characteristic which might both be set to extend or lower voltage from the inventory setting.
Within the case of Zen 4, you wish to scale back the voltage as these CPUs are thermally restricted, not energy restricted. Reducing the voltage reduces thermals and due to this fact buys you extra frequency headroom. This may introduce stability points nonetheless, because the CPU would not all the time have sufficient voltage for the goal frequency.
Including one other layer of complexity is that not all silicon is equal. For instance, what our 7600X can obtain when it comes to undervolting could possibly be wildly totally different to most, it is perhaps significantly better or maybe a lot worse, and at this time limit it is inconceivable to say what the expectation is.
It is also troublesome to validate an undervolt and to take action with any diploma of accuracy would take at minimal days of stress testing. For instance, our 7600X accepted the utmost undervolt worth of destructive 30, it loaded straight into Home windows and we started testing. After an hour of looping Cinebench R23 issues seemed good, thermals had been nicely down, and efficiency was improved, wonderful…
Gaming additionally loved a pleasant efficiency bump, issues had been getting thrilling. However then we tried to run Blender and inside minutes the appliance crashed to desktop. After a number of tries we reverted again to BIOS defaults and the steadiness points went away. So we tried a destructive 25 offset, nonetheless no pleasure. Damaging 20 was no good, and destructive 15 additionally failed. Actually, it wasn’t till we went for destructive 10 that the system appeared utterly secure, however we have but to run totally different hundreds for days on finish, so we won’t say for certain that it is 100% secure.
We have since tried all 4 Zen 4 CPUs and none of them are 100% secure utilizing a -30 offset, most will deal with Cinebench with out concern, however purposes like Blender will crash. Based mostly on our restricted testing -10 to -15 seems achievable, however once more we have not carried out the suitable degree of stress testing to say to say they’re 100% secure underneath these circumstances.
That is all to say and make it very clear that undervolting must be seen in the identical mild as overclocking: you are operating the CPU out of spec and relying on silicon high quality your mileage will fluctuate. Simply because a configuration seems secure after operating some video games and benchmarks, doesn’t suggest it is 100% secure and will not allow you to down on the most inconvenient of occasions.
There’s additionally good cause why AMD runs these Zen 4 processors on the voltages they do, they are not including extreme voltage for the sake of it, they know precisely what these CPUs require for optimum stability.
For testing we’re utilizing our normal AM5 take a look at system which is constructed contained in the Silent Base 802 chassis. The GeForce RTX 3090 Ti has been used together with 32GB of DDR5-6000 CL30 reminiscence, and for cooling we have now the Pure Loop 2 FX 360mm liquid cooler and the AMD Wraith Spire (we’re utilizing the unique Spire with the copper slug). Let’s now get into the outcomes…
Software Benchmarks
Beginning with the Cinebench R23 multi-core outcomes, let’s first evaluate inventory 105w conduct. Right here the 7600X scored 15204 pts, which was proven in our day-one evaluation. Utilizing the Wraith Spire we see a 5% drop in efficiency to 14408 pts because the sustained clock frequency dropped by 3% and the working temperature elevated from 93C as much as 101C, which may be very scorching.
We had been nonetheless shocked to see the all-core efficiency drop by simply 5%. So slightly than try to cap the processor at 95C, it is permitting the 7600X to exceed 100C to keep away from heavy throttling.
With Eco Mode enabled (that are the 65w outcomes), we see that with the 360mm AIO the height working temperature has dropped by 16C, which is big and but all this value us was 50 MHz for a mere 1.5% drop in efficiency.
It additionally improved efficiency with the Wraith Spire, whereas lowering the working temperature by 7 levels and now the 7600X is simply 4% slower than the evaluation configuration, simply 4% slower and a level hotter whereas utilizing the field cooler, that is fairly nuts.
Trying on the undervolt outcomes, we see with the 360mm liquid cooler that issues have improved, not massively however even with a destructive 10 offset we’re nonetheless seeing a 7 diploma drop in working temperature with a 100 MHz increase to the sustained working frequency and this did enhance efficiency by roughly 2%. Definitely nothing to put in writing house about relating to efficiency, however the truth that this was achieved whereas lowering temperatures is an effective end result.
It is a comparable story with the Wraith Spire field cooler. We’re now comparable efficiency to that of the inventory conduct at 105 watts, although temperatures are nonetheless up by 5C.
Which means that simply enabling Eco Mode on the 7600X will present the perfect temperature outcomes whereas not compromising stability, whereas undervolting will usually enhance efficiency and barely decrease temperatures from the inventory configuration.
Each are good choices, however neither are wonderful, they do not drastically enhance how the 7600X performs.
In the meantime, the only core efficiency is barely affected, transferring in both route from inventory by not more than a %.What meaning is for probably the most half gaming efficiency must be largely unaffected.
This is a fast take a look at Blender for these of you . We cannot break down all this information once more because the tendencies are just like Cinebench.
What we’ll say is that utilizing the Wraith Spire will end in a couple of 4% efficiency hit, which is a small distinction actually.
This is a take a look at whole system energy utilization in Blender. Inventory the 7600X pushed whole utilization to 226 watts and with the Wraith Spire that determine got here right down to 211 watts as the upper working temperature noticed the working frequency barely decreased.
Eco Mode would not make an enormous distinction, although we’re seeing a 13% discount in whole system utilization, which is sensible given the CPU itself noticed a 24% discount.
Then with the undervolt, whole system utilization dropped by simply 7%, however keep in mind the working frequency, temperature and efficiency was elevated, which ends up in a internet achieve.
Gaming Benchmarks
For testing video games we’ll begin with Watch Canine: Legion, the place we see that efficiency utilizing the Eco Mode is principally similar to what we noticed inventory, so on the very least avid gamers will wish to allow that mode.
For the perfect end result, undervolting seems like the way in which to go. Utilizing the Wraith Spire we noticed a 3% increase and a 5% increase for the 360mm liquid cooler, in order that’s a pleasant achieve. It is definitely not large, however a 5% increase at no cost whereas additionally lowering energy and thermals is a optimistic end result.
The Rainbow Six Extraction efficiency was a lot the identical. This time at greatest we obtained a 2% increase through undervolting, so not precisely thrilling and once more enabling Eco Mode appears the way in which to go for 7600X homeowners for those who’re nervous about excessive working temperatures at inventory.
Hitman 3 confirmed extra of the identical, efficiency for probably the most half went unchanged between the varied configurations.
Tiny Tina’s Wonderlands was already closely GPU certain utilizing the 7600X, so no change right here and these outcomes will apply to the overwhelming majority of gaming eventualities.
In brief, there’s little or no distinction between these numerous configurations when gaming. The 7600X usually would not come near reaching most energy when enjoying video games and when restricted to 65 watts it should as a rule nonetheless function beneath that.
This additionally means when gaming the 7600X will not be pegged at over 90C like what we see in all-core workloads akin to Blender and Cinebench R23, slightly for the overwhelming majority of video games temps will probably be considerably decrease.
Gaming Temps + Energy
For instance, this is a take a look at F1 22 after an hour of looping the built-in benchmark. For probably the most half, the temperature hovered between 40-50C with the occasional spike into the 60s.
Complete CPU bundle energy draw was usually within the low-50w vary with core energy simply over 20w, so when in comparison with all-core workloads the facility draw and temperatures are considerably decrease in F1 22 gameplay.
Cyberpunk 2077 is way more CPU demanding and right here the bundle energy usually stayed above 80w, besides temperatures had been nonetheless miles off the 93C seen in Cinebench, usually hovering round 63C with transient spikes over 70C.
Spider-Man Remastered is one other heavy CPU person pushed bundle energy to round 82 watts for an working temperature of about 60c, so the same end result to what was seen with Cyberpunk.
Hitman 3 energy utilization ranged between 60 and 75w for the majority of our testing and this resulted in working temperature within the 50-60c vary, so a bit greater than F1 22 however lower than Cyberpunk 2077.
Tiny Tina’s Wonderlands is not too CPU demanding and right here we noticed comparable conduct to that of F1 22. Usually bundle energy hovered simply above 50w with working temperature ranging between 45 – 50C.
Lastly, Counter-Strike is not a core-heavy recreation nevertheless it does push the CPU with a whole bunch of frames per second which noticed bundle energy usually round 50w for a typical working temperature of simply 50C.
What We Discovered
Ranging from the highest, the brand new Eco Mode is only a energy restrict and it labored fairly nicely with the Ryzen 5 7600X, dropping temperatures considerably with a great cooler, whereas having nearly no affect on efficiency. How a lot totally different this will probably be for higher-end 170w Zen 4 CPUs fashions will rely upon the facility limits. Proper now, the 1-click-option in Ryzen Grasp will apply a 65w restrict, however motherboards are actually getting this characteristic, so we count on a spread of energy choices.
An identical technique could be to easily power a tough temperature restrict. It is just about the identical factor as Eco Mode, the facility restrict is only a bit extra dynamic relying in your cooling efficiency, however the total end result will probably be comparable.
Undervolting with PBO2 is a neat trick although as we have defined there are a couple of main caveats. Relying on silicon high quality the outcomes could possibly be nice, first rate or very unimpressive, so this isn’t a universally confirmed technique.
The opposite concern is stability and stress testing to a level the place you may be happy that the system is 100% secure underneath all circumstances takes time and expertise, and if you cannot afford crashes we would say for many it is merely not going to be definitely worth the threat.
What shocked us was how nicely the 7600X labored with the Wraith Spire. Absolutely, temps utilizing the inventory configuration had been excessive, nevertheless it labored superb and efficiency was nice. Then with somewhat tweaking or by merely enabling Eco Mode it was very usable. Temps had been nonetheless excessive, however we had been now in AMD’s “secure” vary. Extra importantly, this implies utilizing an reasonably priced tower type cooler may be very attainable and can result in significantly better outcomes than what we noticed with the AMD field cooler.
It is also essential to notice that the 95C outcomes proven for Zen 4 CPUs are recorded operating aggravating all-core workloads and do not apply to any gaming state of affairs. Utilizing the very same configuration that resulted in 95C in Cinebench R23 noticed on common only a 60C working temperature when gaming, and for a lot of video games the temperature will probably be significantly much less.
At this level, we do not discover the excessive working temperatures of Zen 4 that large of a deal. By monitoring how they behave it is fairly apparent AMD is not mendacity, slightly the CPUs are working as meant and as course of nodes proceed to extend in density we consider this type of conduct will probably be normalized.
The actual concern for Zen 4 at current is platform value. The brand new CPUs are already costly, nevertheless it’s the absurd worth of AM5 motherboards that hurts their worth, together with the necessity for premium DDR5 reminiscence. Each will nearly definitely be solved in time, however for now you are merely greatest off ready, which was our suggestion in Zen 4 opinions.
And that is going to do it for this one. We’ll get again to additional Zen 4 testing, among the many concepts we have now are an in depth cooler information, AMD X670 and AMD B650 motherboard VRM testing, and way more. So keep tuned.
